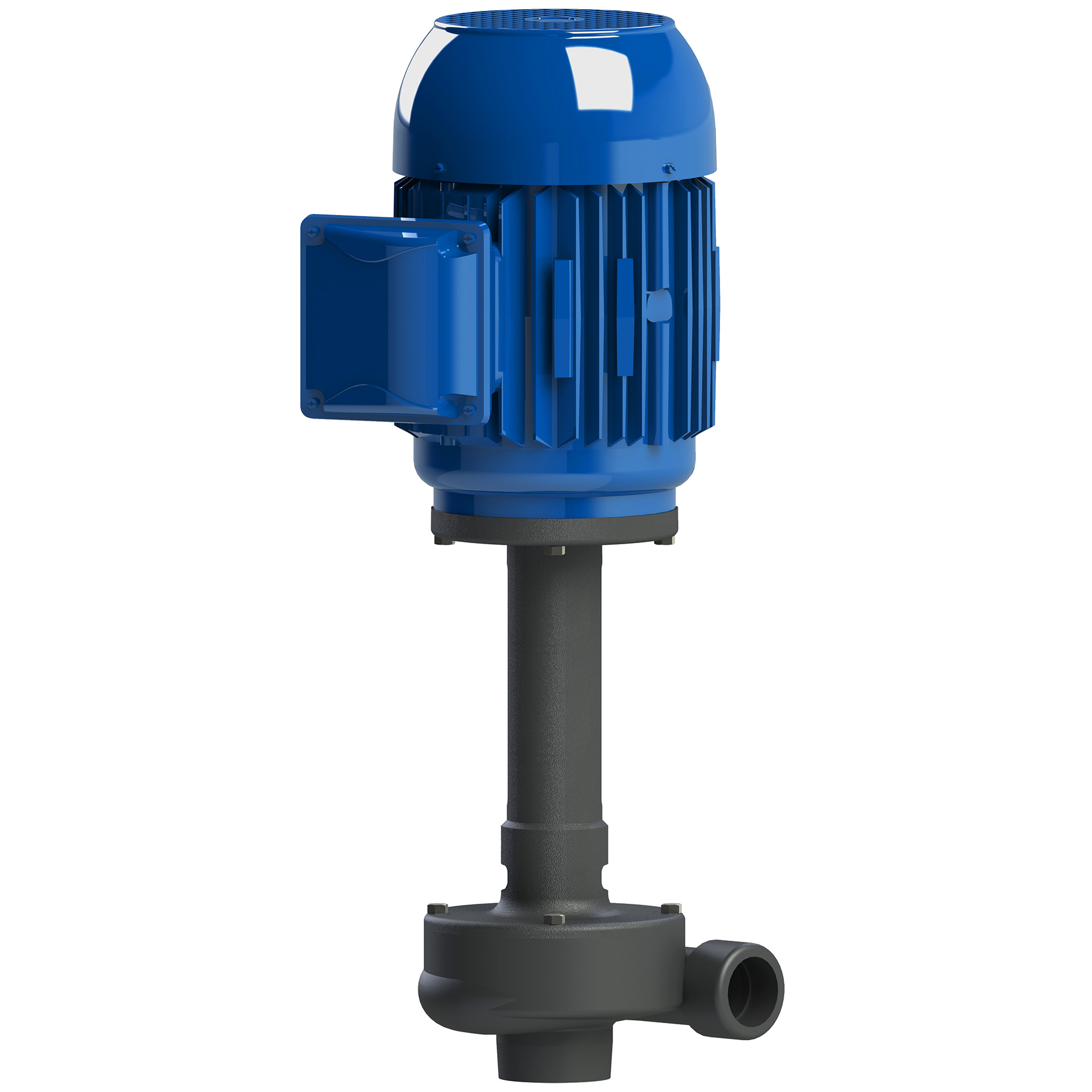

7800 Vertical 11019-NS | 11019-NSSE

Key Specifications for 1750 & 3450 RPM Models

Flow: Up to 72 gpm (1750 RPM) | Up to 143 gpm (3450 RPM)
Head: Up to 34’ TDH (1750 RPM) | Up to 127’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp and 7.5 hp
Motor Type: TCZ Frame
Max Solid Size: .21”
Intake: 2”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

Durable one-piece shaft eliminates risk of coupling misalignment
Enclosed impeller (11019-NS) | Semi-enclosed impeller (11019-NSSE)
Sealless design reduces maintenance by eliminating the need for failure-prone seals
Renewable shaft sleeve protects shaft from wear
Design ﬂexibility to suit your exact install speciﬁcations with extended lengths, multiple mounting plates and adjustable brackets

Options:

Enclosed column design (learn more)
Cast Iron or 316 Stainless Steel construction
Multiple bushing materials
Impeller variations: 316 Stainless Steel or recessed design
Bushing flush line addition
Choice of 1 or 3 phase motor
Extended shafts (6”, 12”, 18” or 24” standard; custom available, consult engineering)
Adjustable mounting brackets
Choice of plate shape/size

Applications:

Cooling equipment and towers
Engine and chassis dynos
Wastewater and water purification
Commercial laundry
Industrial sump
Parts washers
Spray booths
Paint systems

Performance Curves

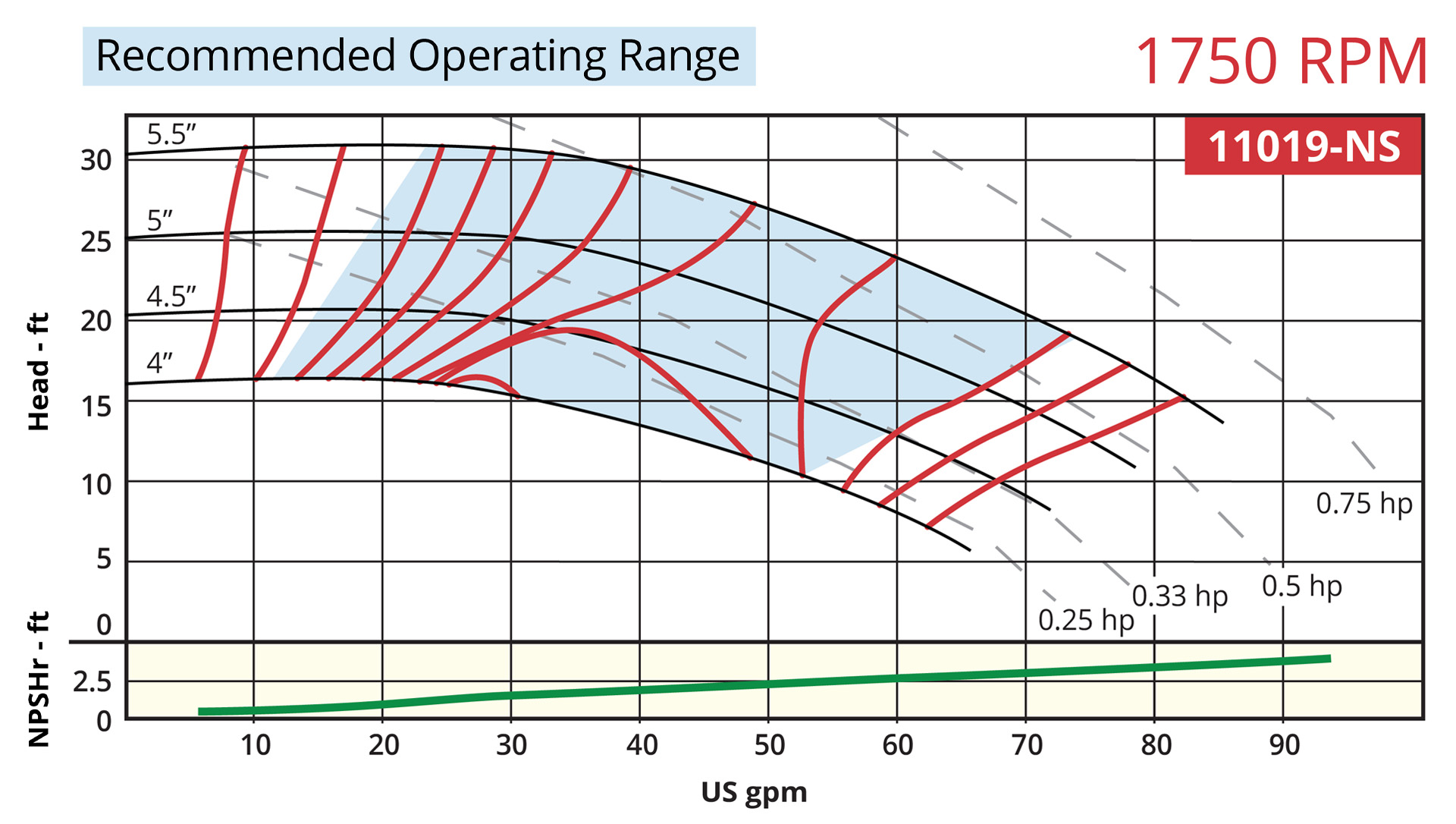

7800 Vertical 11019-NS 1750rpm Operating Range Curve

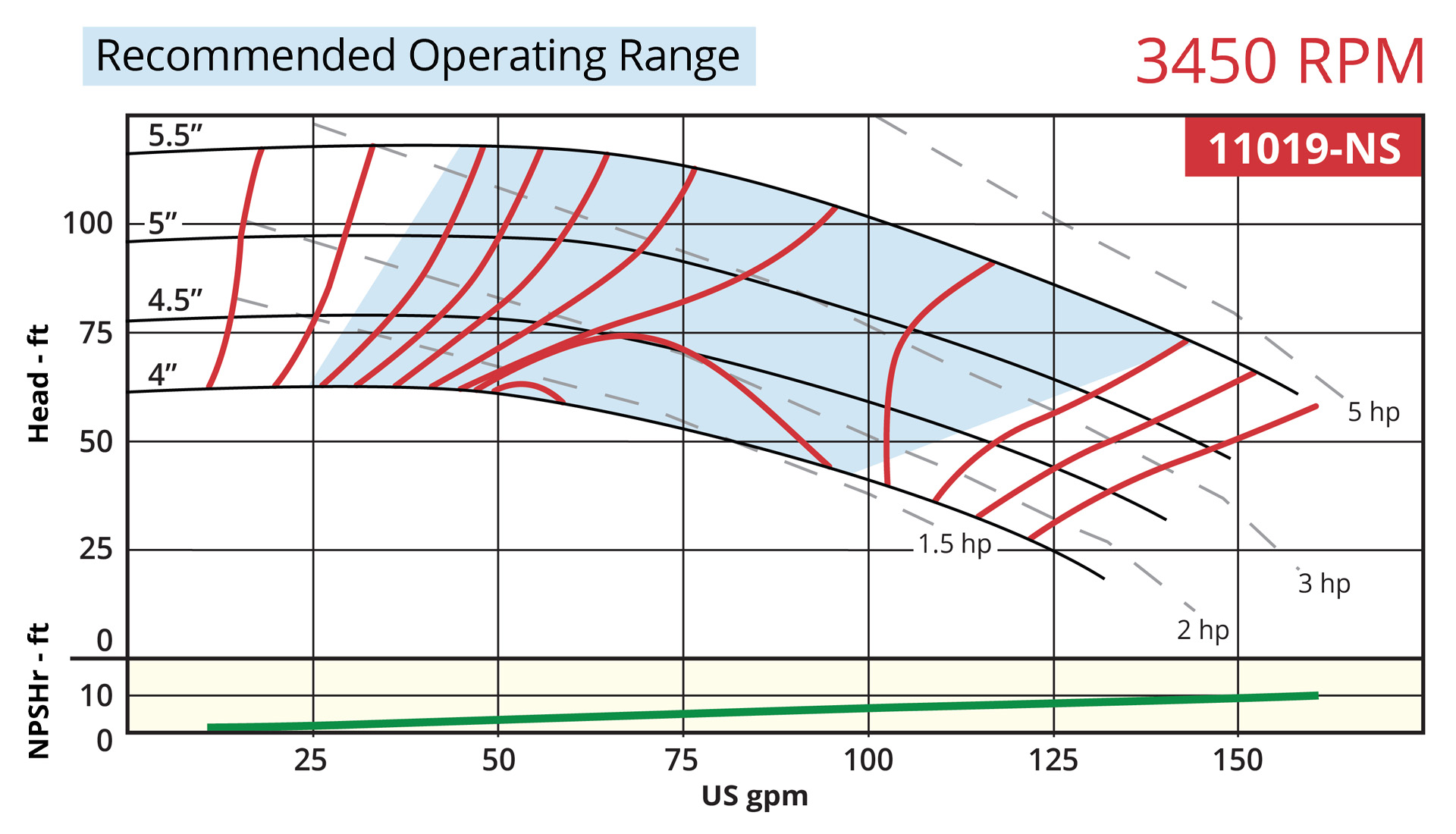

7800 Vertical 11019-NS 3450rpm Operating Range Curve

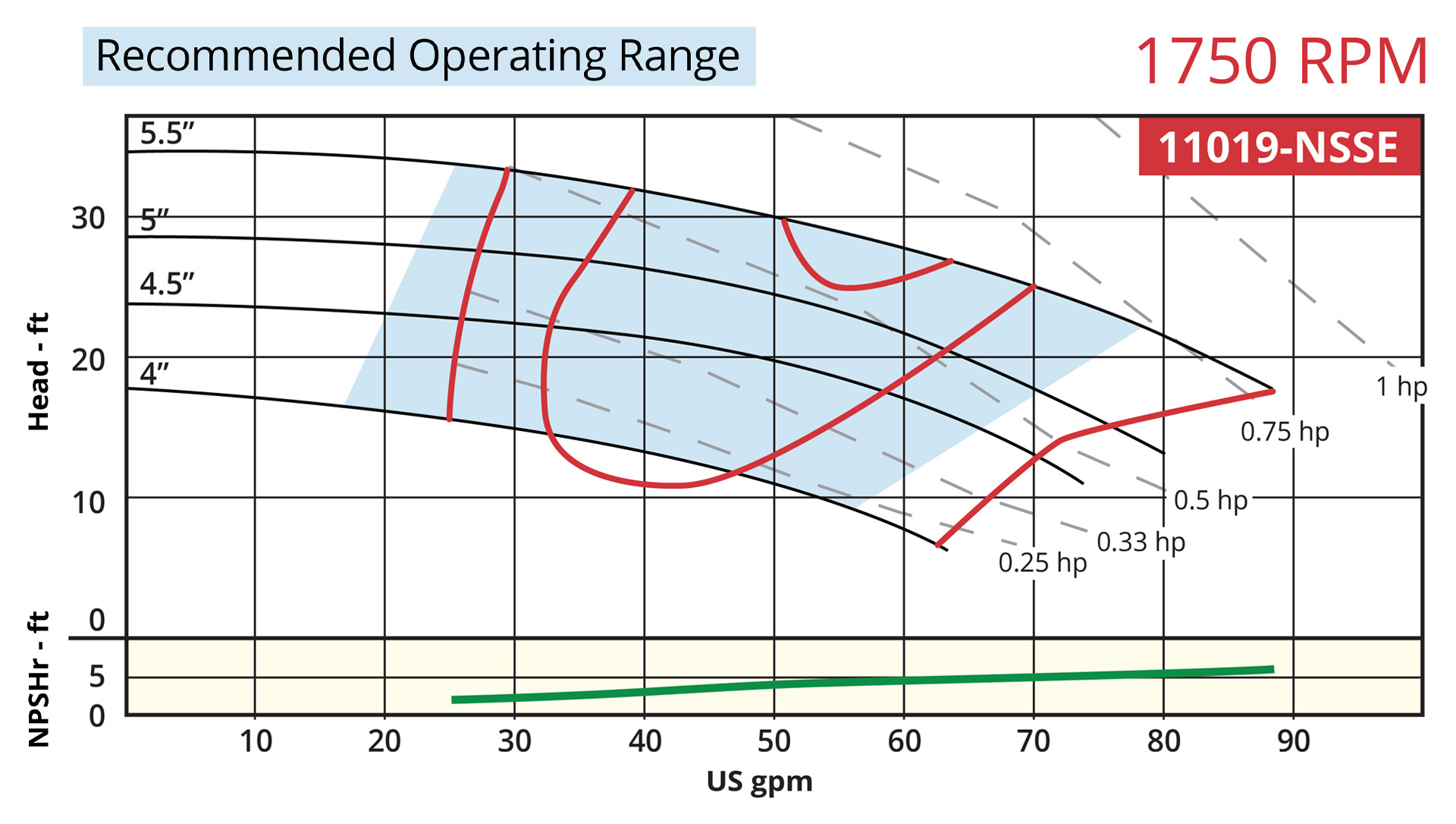

7800 Vertical 11019-NSSE 1750rpm Operating Range Curve

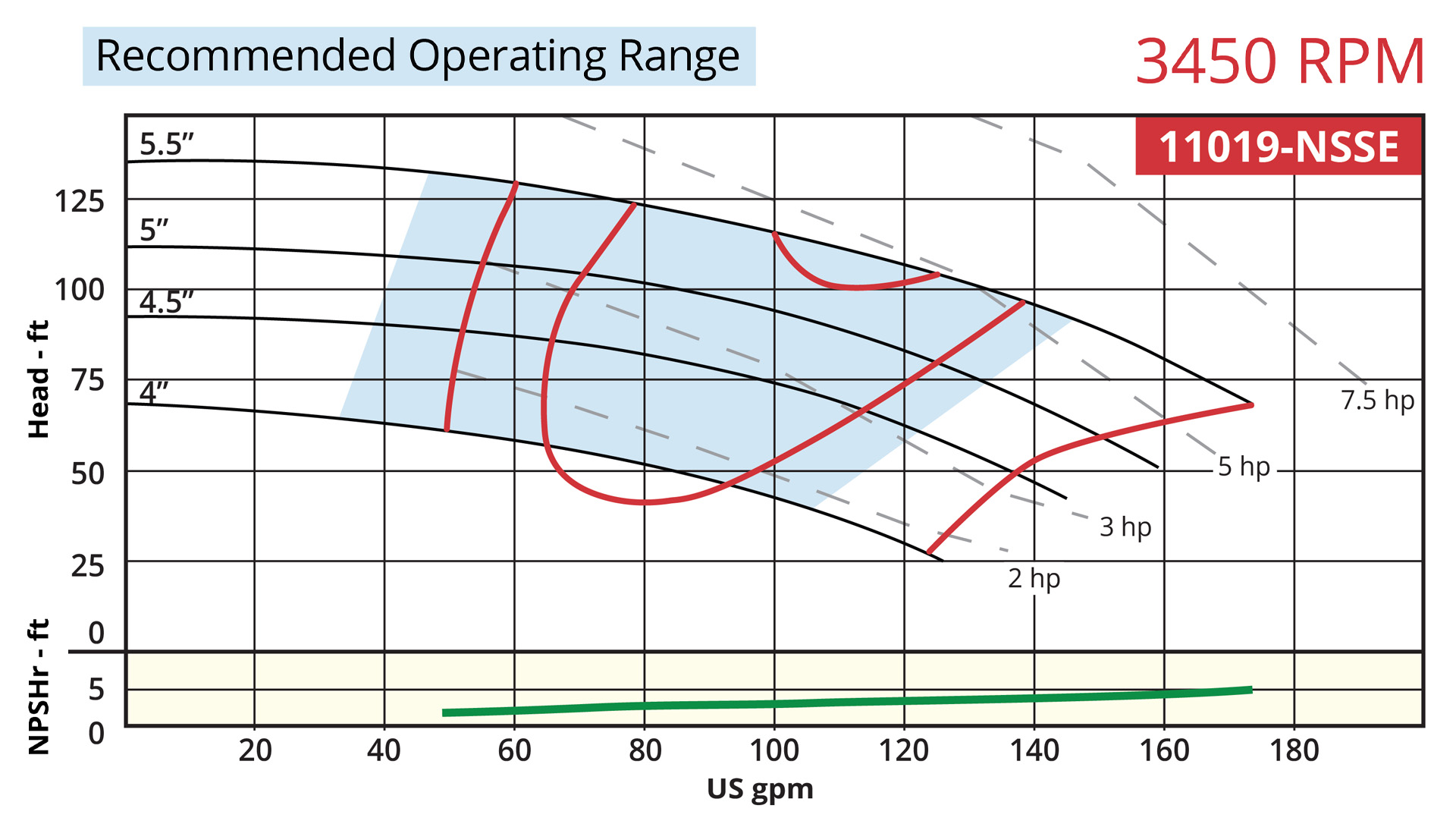

7800 Vertical 11019-NSSE 3450rpm Operating Range Curve

Dimensions / Weights

Dimensions*

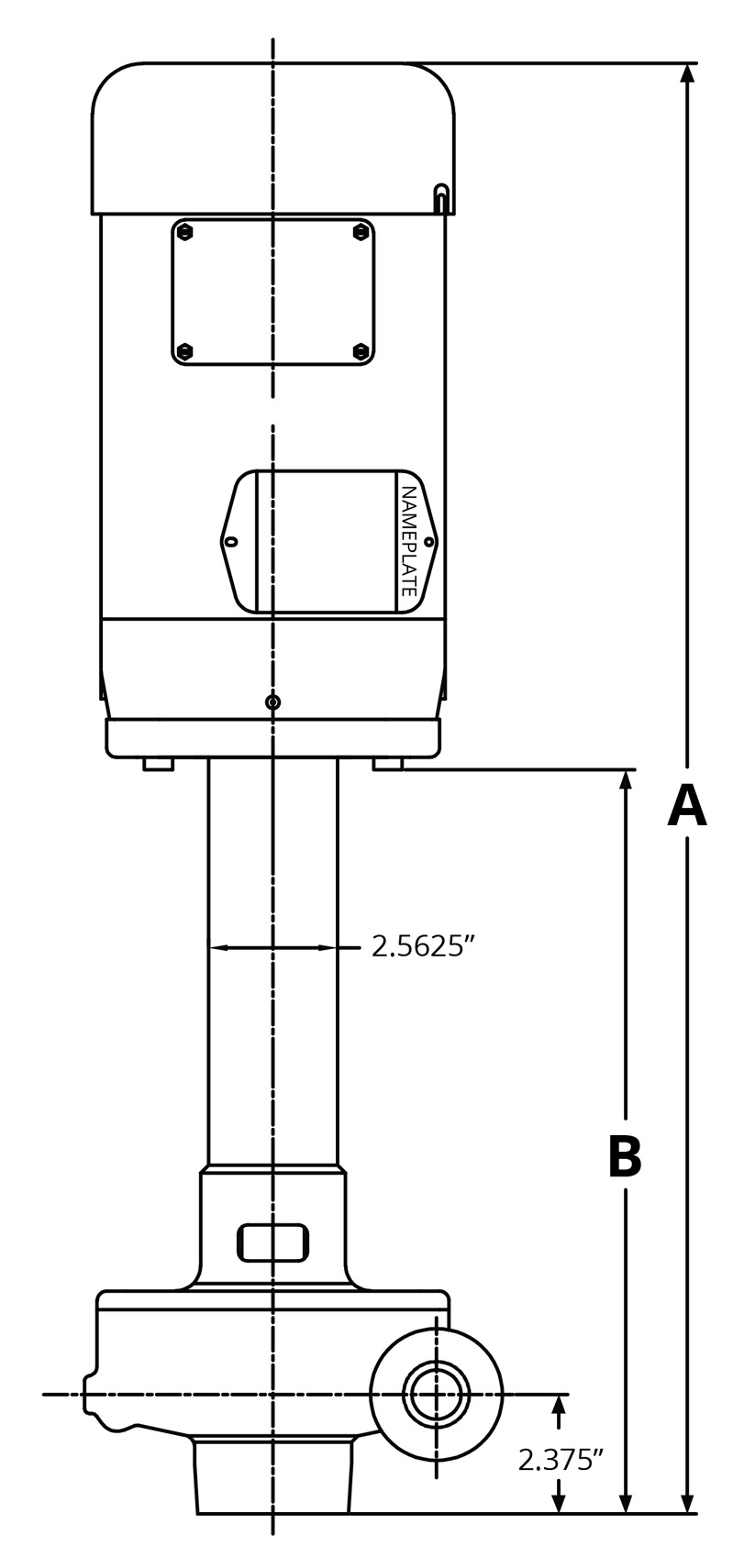

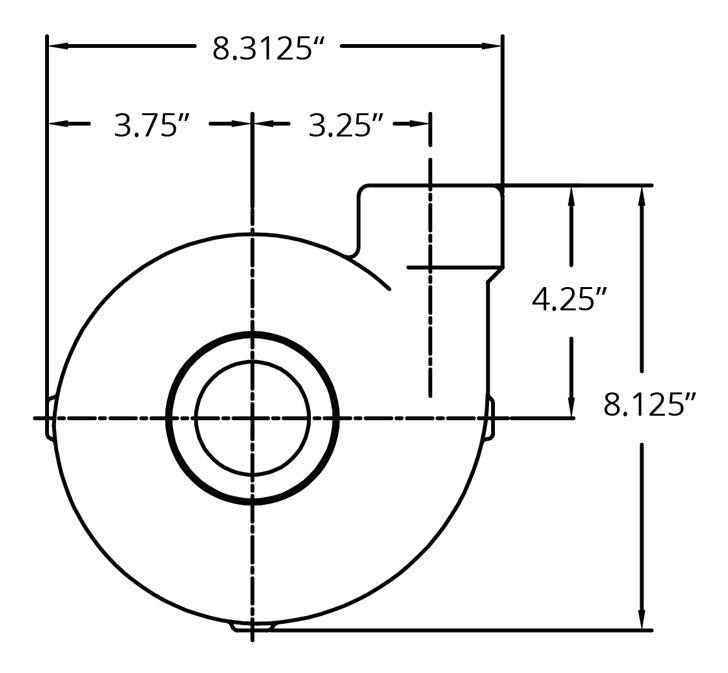

7800 Vertical 11019-NS Bottom Dimensional Drawing

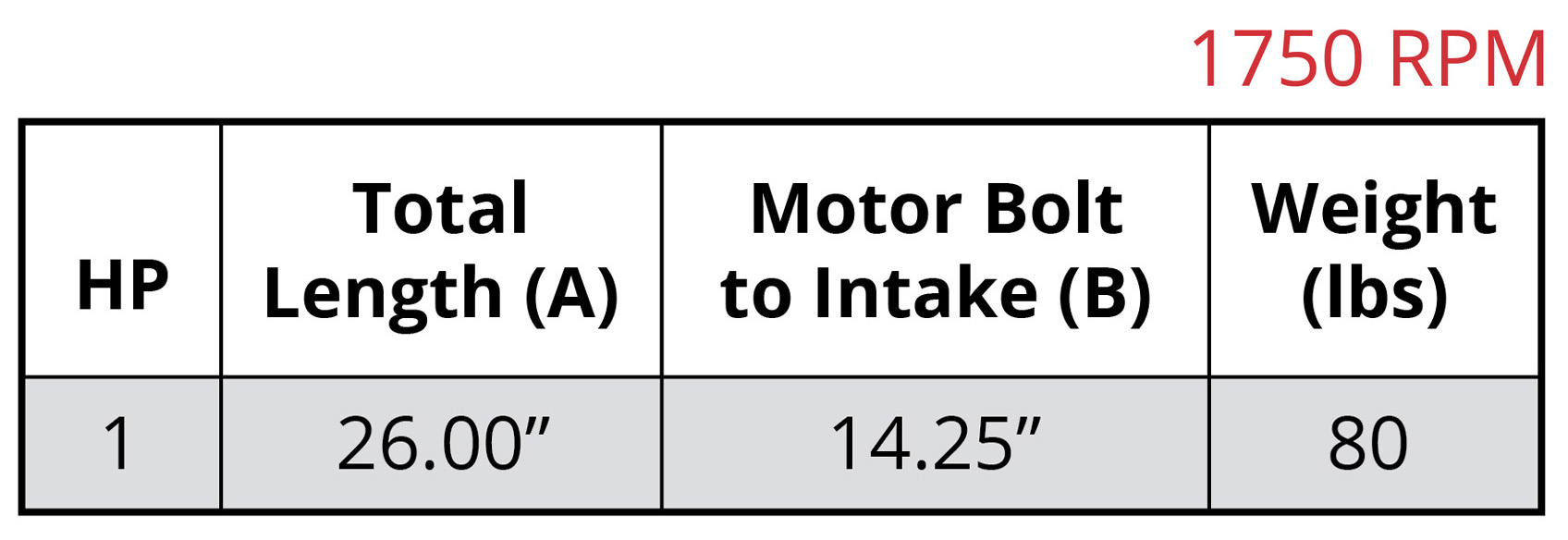

7800 Vertical 11019-NS 1750rpm Dimensional Chart

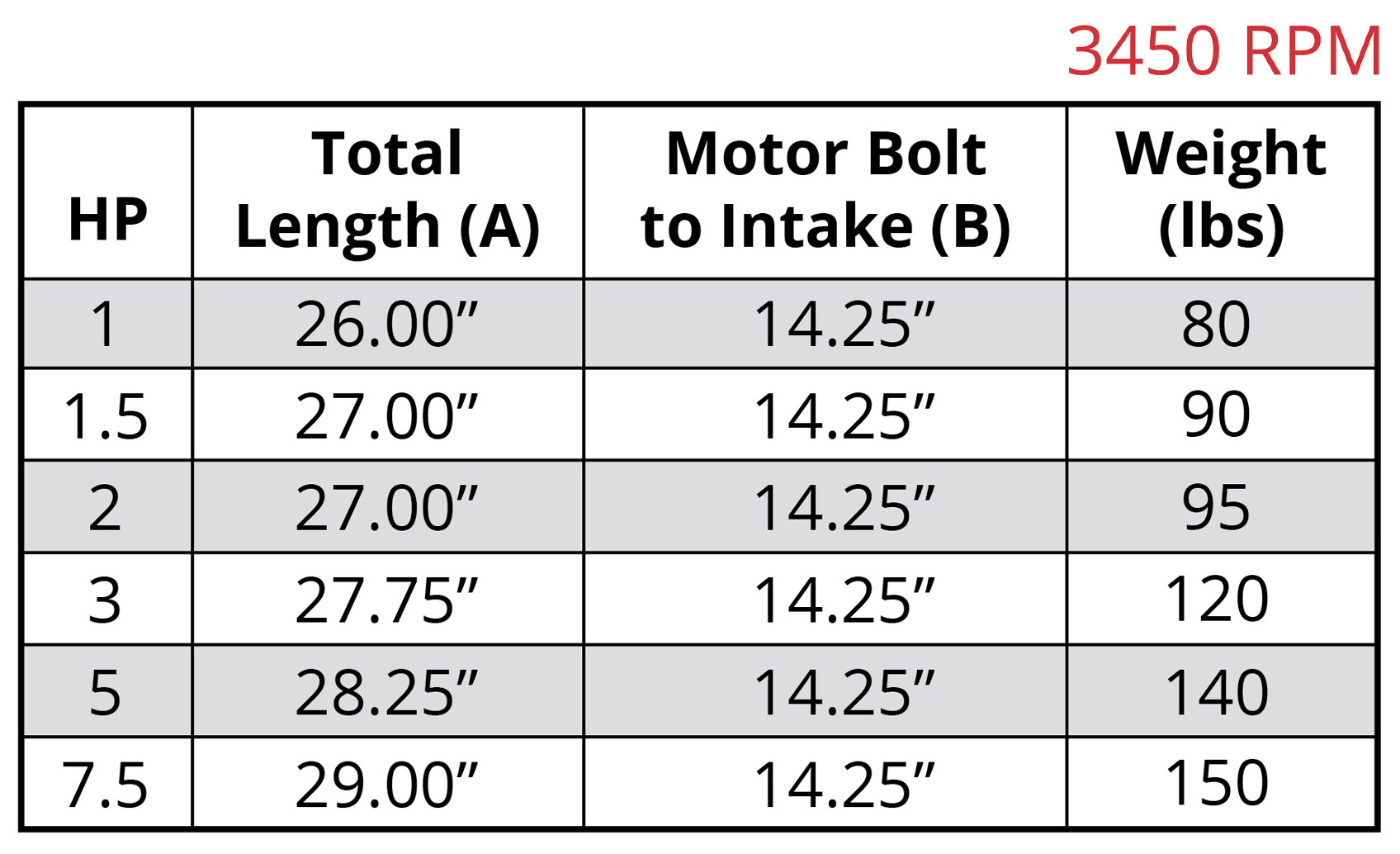

7800 Vertical 11019-NS 3450rpm Dimensional Chart

*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
For extended lengths (6”, 12”, 18”, 24”, or custom), add extension length to Total Length
